Kaplan Turbine
For low head applications
Kaplan Turbine is a reaction turbine used primarily for applications with low head and large flows. FLOVEL’s Kaplan turbines are based on decades of know-how and state-of-the-art technology. These Kaplan turbines guarantee the highest operating efficiency and reliability.
Application Range
- Heads up to 70 Meters
- Runners with 3 to 8 blades
- Double or Single regulated
- With or without Gearbox
- Steel, Concrete Spiral or Syphon Intake
Features
- Oil free runner hubs
- Internal or external Servomotor option
- Maintenance free water-lubricated guide bearing
- Blade dismantling without runner removal
- Library of 20 models available to choose from
- Guarantees for output, efficiency and cavitation based on model
Dhakrani HEP

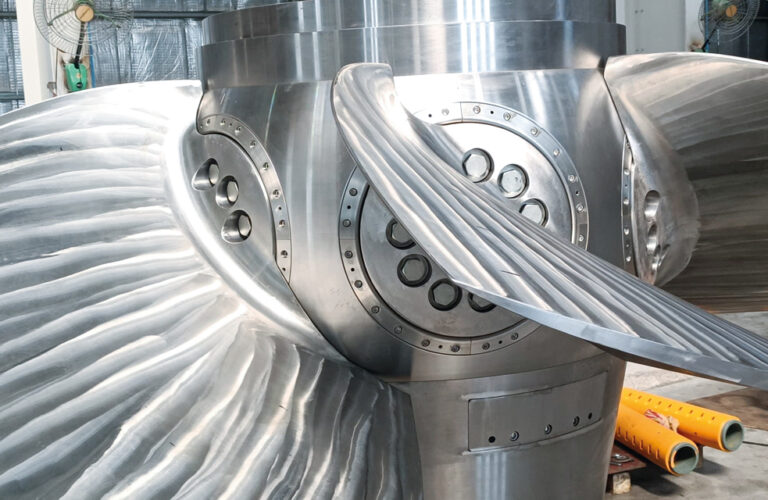

Sharing a reel from our manufacturing facilities – Another Masterpiece Delivered Series! The featured Kaplan runner, custom-built for Dhakrani HEP, has a six-blade configuration with a diameter of 3,400 mm, the turbine is designed to deliver 12,900 kW of clean hydro energy. After the successful completion of FAT, the featured Runner is now ready for packing and dispatch.
Stay tuned for more updates on this project!
Reference Projects
Successfully implemented projects are a confirmation of our hard work.
Here you can see a selection of our projects we have completed in the past.
